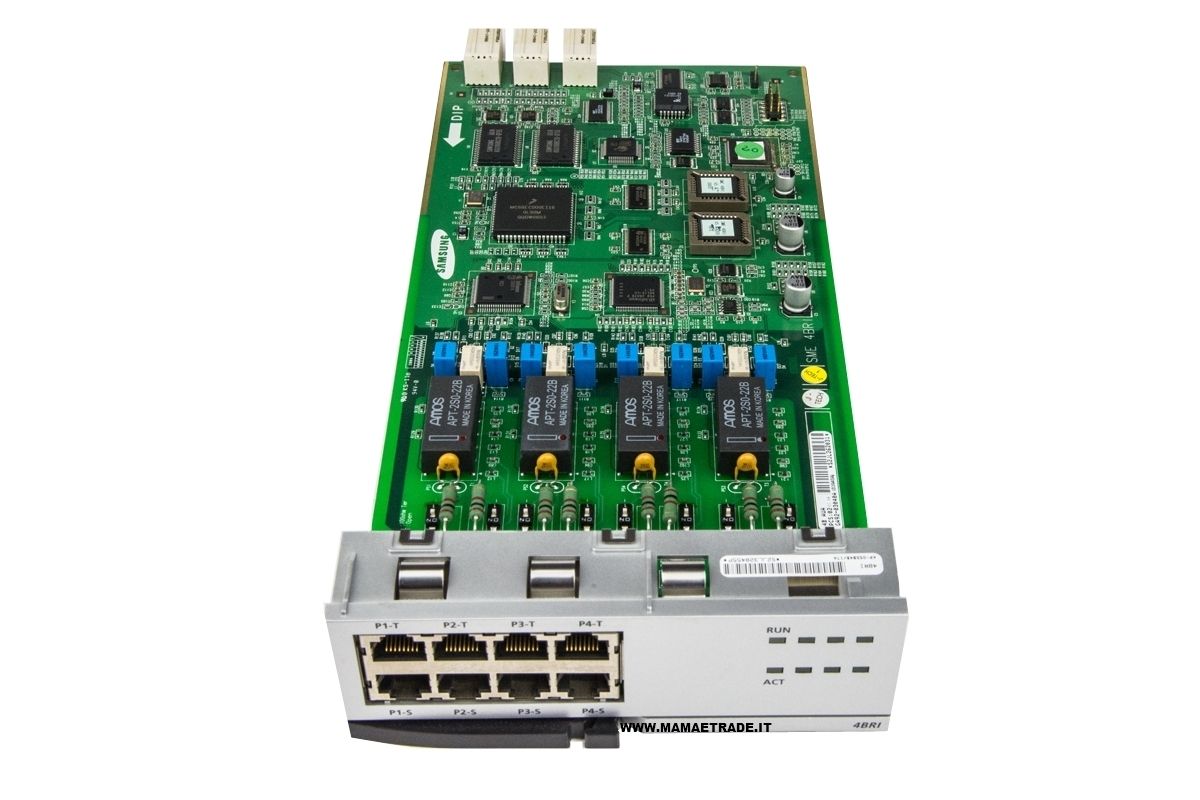

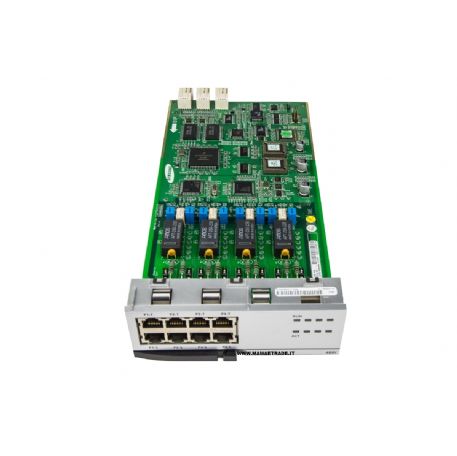

SCHEDA 4 BRI PER SAMSUNG OFFICESERV 7200
SCHEDA 4 BRI PER SAMSUNG OFFICESERV 7200
Codice: KPOSDB4BXFE-R
GARANZIA MESI 12
Codice: KPOSDB4BXFE-R
Confezione: Pz 1
Peso:
Kg. 0,5
The 4BRI module performs the following functions:
- Processes T or S signals by programming.
- Processes the following signals by programming: Point to Point Normal, Point to Point DDI, Point to MultiPoint.
- Switchable Resistor Terminations (100Ω)
- Endures the ITU-recommended level of surge.
- Protects the output port by monitoring line signals.
- Crystal-less wander and jitter attenuation/compensation to TR62411.
- Attenuates/compensates jitter as recommended in ITU-T I.431 and G703.
- Performs local/remote loopback for test.
The Samsung OfficeServ 7200 cannot accommodate interface cards from the DCS system
- See more at: https://www.prptelecom.co.uk/samsung-officeserv-7200-4-bri-trunk-card-4-x-isdn2e/#sthash.aCf75sfk.dpuf
The 4BRI module provides four ports for BRI-T/S connection. It transmits voice via the trunk line and a channel transmits voice data at 64 kbps.
The 4BRI module performs the following functions:
Processes T or S signals by programming.
Processes the following signals by programming: Point to Point Normal, Point to Point DDI, Point to MultiPoint.
Switchable Resistor Terminations (100Ω)
Endures the ITU-recommended level of surge.
Protects the output port by monitoring line signals.
Crystal-less wander and jitter attenuation/compensation to TR62411.
Attenuates/compensates jitter as recommended in ITU-T I.431 and G703.
Performs local/remote loopback for test.
